Slipring PCBs are used for the transmission and tapping of power, signals and data of rotating systems. Fields of applications are for instance in industrial robots or wind turbines. An essential condition for a long service life and high reliability is the correct application of the precious metal coating.
-

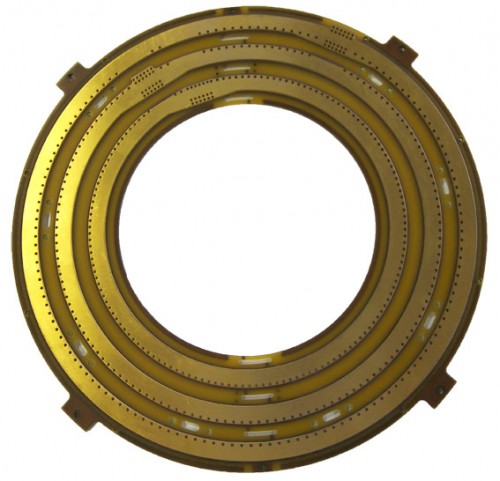

- Slipring Multilayer, 500 mic Cu
-

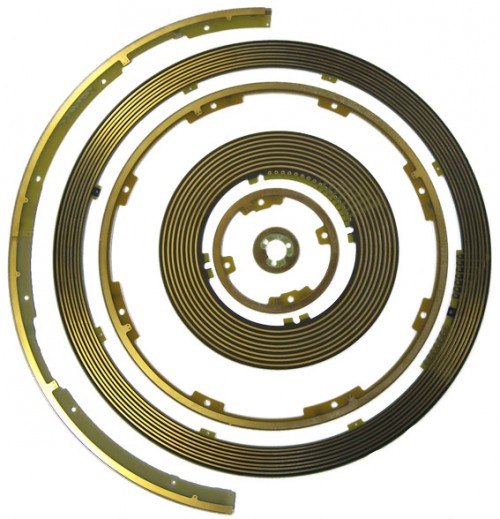

- Various Slipring PCBs NiAu
-

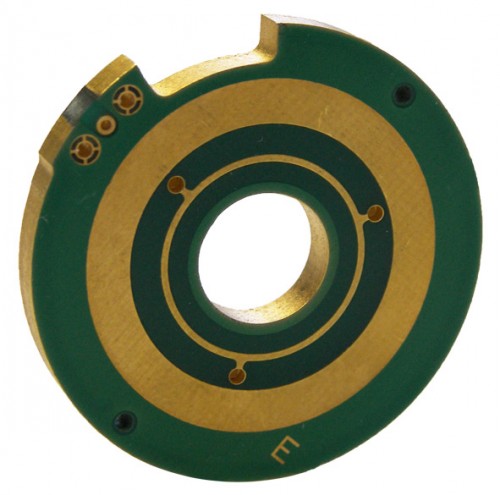

- Slipring PCB with edge platting
-

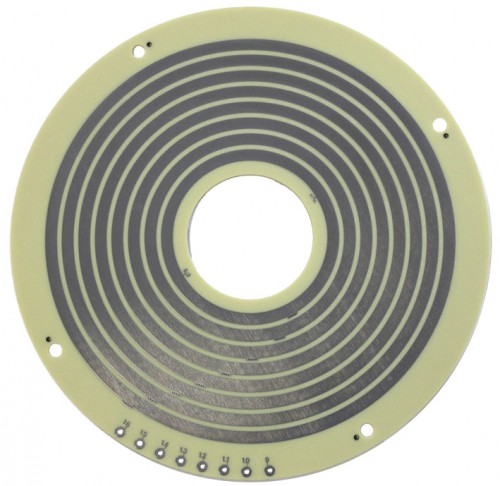

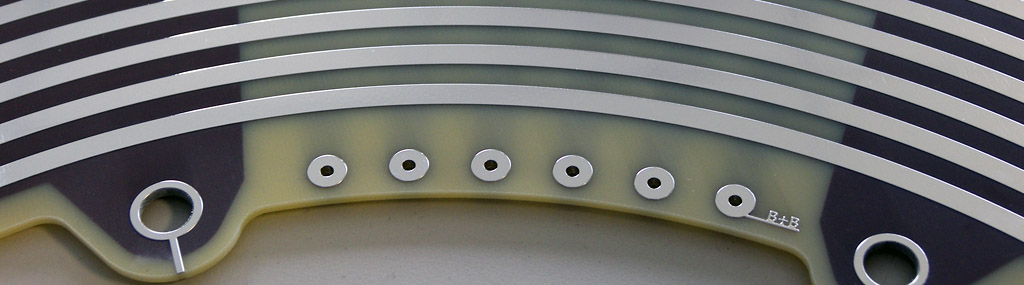

- Slipring PCB NiAuRh
-

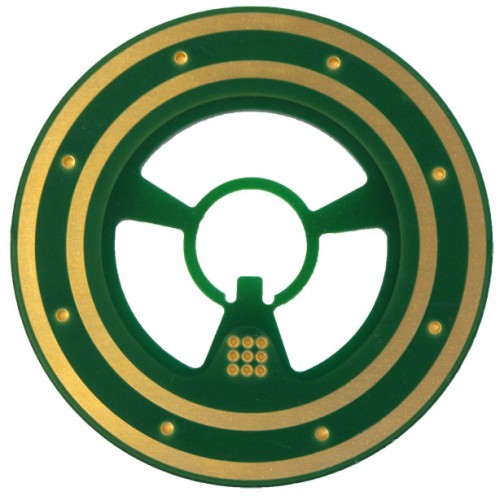

- Slipring PCB simple

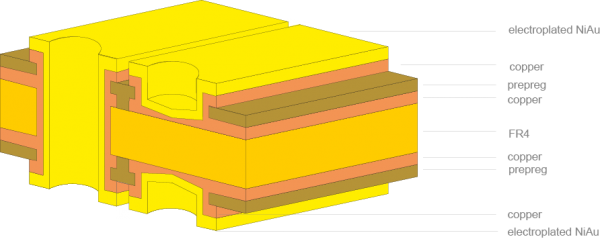

Material parameters
- base layer 10 mic Ni – electroplated sulfamate process
- alloy compositions: Au (1,5 mic electroplated gold), Rh 0,8 mic, RhRu 0,8 – 1,0 mic
- coating thickness base copper max. 500 mic
- max. diameter 650 mm
Your advantages at a glance
- no limitation of the rotary movement and rotating angle
- high reliability and long service life
- reducing wear through matched components
- cost-efficient
